How The Dwyer Company Engineered Precision Micro-Pile Foundations for the Cincinnati Zoo’s New Mexican Wolf Habitat
- Project Type: Commercial
- Project Services: Micropiles
As part of the Cincinnati Zoo’s ambitious renovation to create a new Mexican Wolf Habitat, The Dwyer Company was brought in to solve a foundational challenge that required precision engineering in one of the most constrained job sites we’ve encountered, a decommissioned exhibit, active zoo grounds, and a December snowfall that wasn’t waiting on anyone.
Working alongside General Contractor Terrex and Engineer of Record Civil Solutions, our team installed a 39-pile micro-pile system to support a new boardwalk — completing the scope in three weeks, on schedule, without disturbing surrounding trees or impeding the multi-crew coordination happening across the site.
Quick Facts
- Owner: Cincinnati Zoo
- General Contractor: Terrex
- Engineer: Civil Solutions
- Location: Cincinnati, Ohio
- Project Type: Commercial — New Construction
- Project Date: December 2025
- Timeline: 3 Weeks
- Key Metric: 39 Micro-Piles | 10 Kips Design Load | Factor of Safety: 3
- Depth: 20–25 feet per pile | 5-foot rock socket
The Challenge
The new Mexican Wolf Habitat required a structurally sound boardwalk, and that boardwalk needed to be anchored into the ground that was formerly home to the Zoo’s white lion exhibit. That sounds straightforward until you’re standing on it in December.
The terrain was hilly and uneven, making equipment access to each pile location a logistical puzzle that required additional planning and manual effort on every move. Snow and cold weather added both a safety variable and a scheduling pressure that the crew had to work through not around.
Compounding the terrain challenge, a number of mature trees throughout the site were non-negotiable: they couldn’t be removed, trimmed, or damaged. Every equipment path, every drill position had to be planned around their root zones and canopy lines. And unlike a commercial construction site cleared for a single trade, this was an active, multi-crew environment. Our work had to integrate seamlessly with other contractors operating in the same tight footprint simultaneously.
Key Project Details
Micro-piles installed to engineered load specifications
10kips
Compression capacity per pile with 3× safety factor
20-25ft
Pile depth with minimum 5-ft rock socket
Protected Site Access
Installation routed around mature trees and steep grade changes
Cold-Weather Install
Snow management and winter grout protocols maintained safety
3weeks
Completed from mobilization to final pile installation
The Solution: Precision Micro-Pile Installation in a Constrained Environment
The Dwyer Company engineered and installed 39 micro-piles, each designed to bear 10 kips with a factor of safety of 3, a specification that reflects both the structural demands of the boardwalk and the long-term performance expectations of a public-use facility.

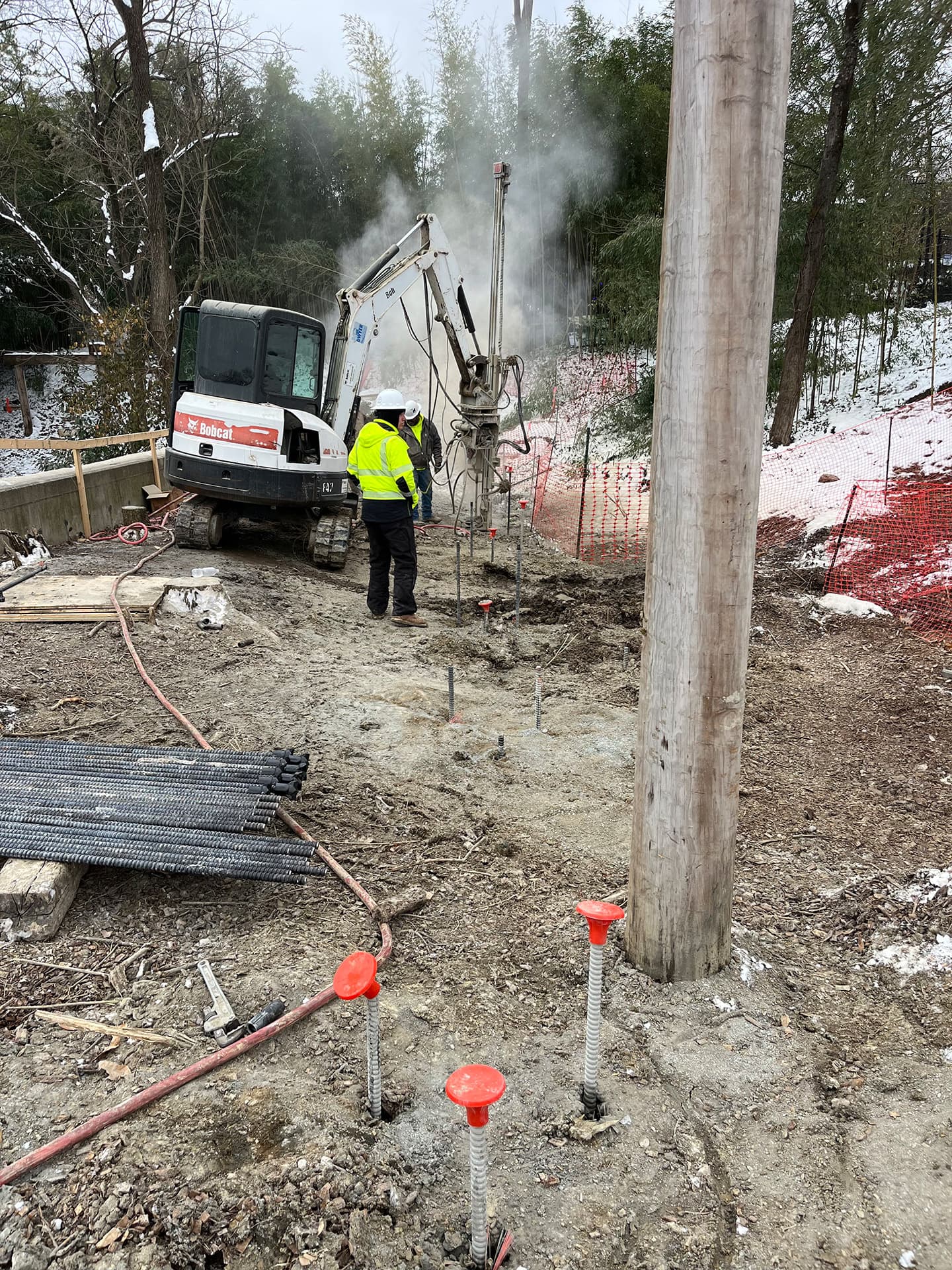

Each pile was drilled to a depth of 20 to 25 feet, terminating in a 5-foot rock socket to ensure that load transfer was anchored into competent bedrock rather than relying on the variable upper soils of the hilly site. Given the terrain, achieving consistent socket depth across all 39 locations required careful equipment positioning and drilling discipline from the crew on every single install.
The proximity of protected trees required our team to sequence the work with precision, identifying equipment approaches that protected root systems while still allowing us to hit design locations. In several instances, this meant creative rigging and positioning to reach target coordinates without damaging the surrounding landscape. The Zoo’s existing infrastructure also required careful coordination throughout the project, both for safety and for the continuity of zoo operations nearby.
Each pile featured a progressive helical configuration with 10″-12″-14″-16″ lead sections, providing maximum torque correlation and load-bearing performance. This engineered approach eliminated the need for costly soil improvement alternatives while maintaining project schedule and budget requirements.
The entire installation was completed in just 6 weeks, allowing the project to maintain its aggressive construction timeline without compromising structural integrity or safety standards.
Why The Dwyer Company
Foundation work doesn’t happen in a vacuum, and on this project, every variable that could add complexity did. What made the difference was the same thing that makes the difference on every Dwyer job: communication before problems become delays, teamwork when the terrain doesn’t cooperate, and coordination that keeps every trade moving forward together.
-
Terrain Adaptability
Our crew developed site-specific equipment access strategies for each pile location, turning a hilly, constrained site into a controlled installation sequence -
Tree and Environmental Protection
Zero damage to protected trees or existing zoo infrastructure — achieved through deliberate pre-planning and disciplined execution -
Weather-Hardened Operations
December conditions didn't stop the clock; our team maintained quality standards and schedule integrity throughout -
Multi-Trade Integration
Proactive communication with Terrex and parallel crews ensured our scope advanced without creating bottlenecks for other contractors -
Geotechnical Precision
100% of piles achieved target rock socket depth, delivering full design capacity across the entire 39-pile system
The Result
The Cincinnati Zoo now has a boardwalk foundation built to last decades, engineered to carry public load with a 3x safety margin, and installed without a single protected tree disturbed or a day lost to weather. What could have been a difficult, delay-prone December project became a case study in what happens when a crew shows up prepared for the site they’re actually working on — not the one they wished they had.
The Mexican Wolf Habitat opens with a boardwalk that visitors will walk across without ever thinking about what’s underneath it. That’s exactly what good foundation work looks like.
